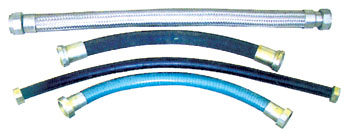

NG系列防爆挠性连接管



适用范围
1、爆炸性气体环境危险场所:1区、2区
2、爆炸性气体环境:ⅡA、ⅡB
*可按用户要求做成粉尘防爆

Application scope
1、Explosive gas atmospheres hazardous location: zone 1, zone2
2、Explosive gas atmospheres: group ⅡA,ⅡB
* Can be manufactured with dust proof construction on the request of customer


产品特点

1、具有耐燃、耐腐蚀、耐水、耐老化、挠性良好、结构牢固,可作为防爆电气设备进出线或钢管布线弯曲难度较大的场所连 接之用。
2、挠性管长度、螺纹规格可根据需要特殊加工。

Product Features
1、The product has the characteristics of flame, corrosion, water and aging resistance, good flexibility and solid construction. It may be used for connecting inlet and outlet leads or conduit wiring of explosion protection electrical equipments that have high flexibility factors.
2、The length of flexible tube and thread size may be made specifically on request.

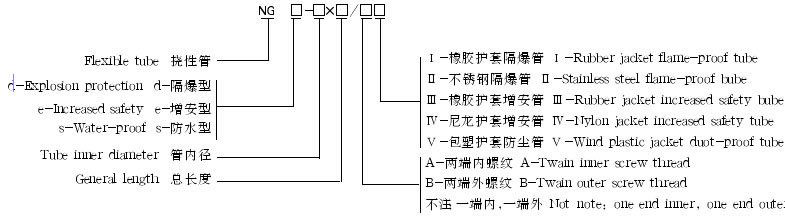

型号含义 Type designation

主要技术数据 Main technical Specification
产品型号
防爆标志
公称直径(mm)
接头螺纹规格
长度(mm)
最小弯曲半径
NG□-13×700
ExdⅡ
*DIPDT
13(15)
G1/2″
700
80
NG□-20×700
20
G3/4″
700
110
NG□-25×1000
25
G1″
1000
145
NG□-32×1000
32
G11/4″
1000
180
NG□-38×1000
38(40)
G11/2″
1000
210
NG□-50×1200
50
G2″
1200
270
NG□-63×1400
63(70)
G21/2″
1400
340
NG□-75×1400
75(80)
G3″
1400
400
NG□-100×1400
100
G4″
1400
520
